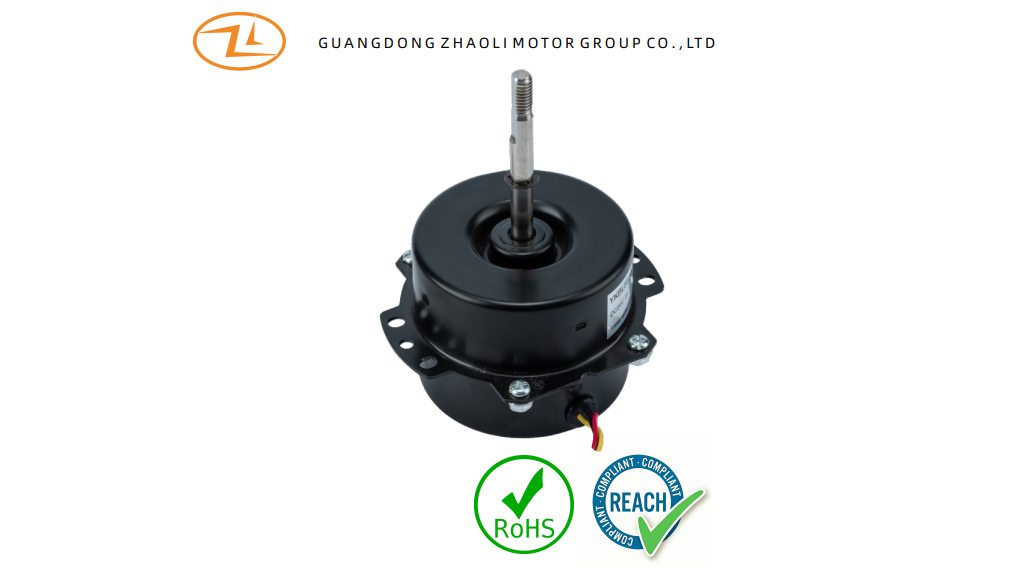

The 18-series outer-rotor BLDC motor, is specifically optimized for ventilation and air purification applications.
With a rated voltage of DC:12V–24V, a speed range of 500–5000 rpm, and a maximum power rating of 6W, it delivers precise airflow control across multiple operating modes.
The brushless electronic commutation design boosts efficiency by 20%-30% compared to traditional brushed motors, reducing energy consumption while ensuring ultra-quiet operation (<35 dB) for quiet environments like bedrooms and studies.
Its compact 18-series form factor and flange-mount design enable easy integration into small air purifiers, and the brushless construction eliminates mechanical wear, delivering a service life of over 10,000 hours for reliable, long-term performance.
| Motor | Speed range | Rated voltage | Rated power |
| 18 Series | 500–5000rpm | DC:12V–24V | 6W (MAX) |
